HD SQUAD 3

Our Squad 3 is a full-featured, 8 path, Ku band uplink truck built on a very agile heavy-duty pickup truck chassis that is not constrained by the limitations of a larger truck with DOT restrictions. It is a custom-designed technologically advanced truck that can handle anything from a prime-time sports backhaul to a multi-path network news broadcast.

TRUCK FEATURES

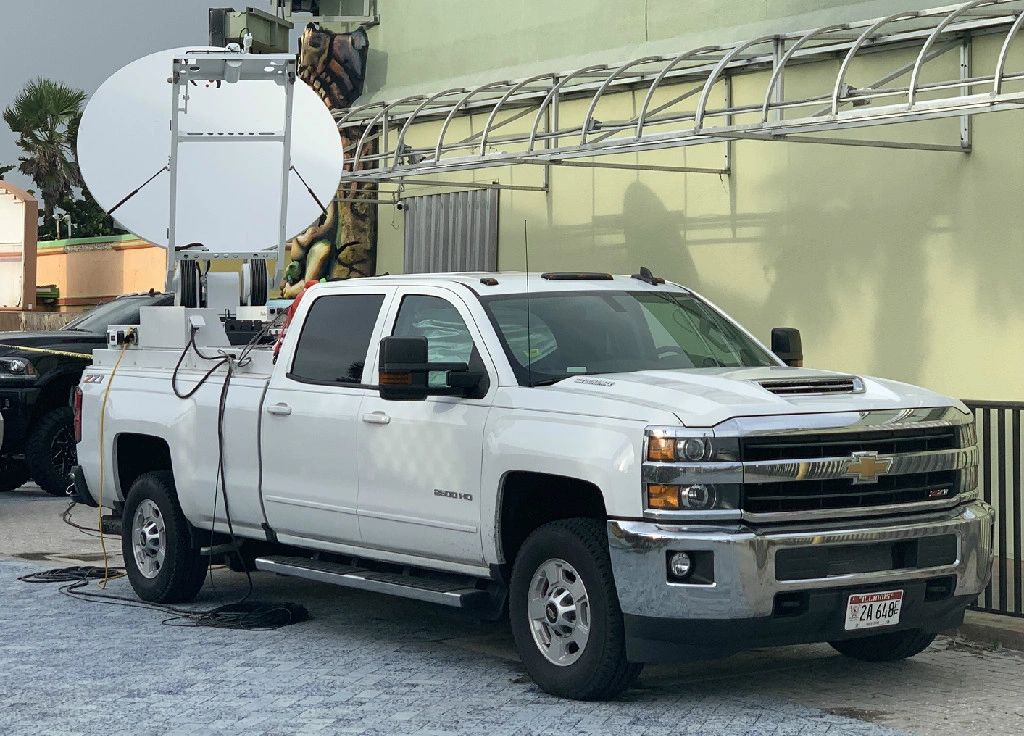

• Chevrolet Silverado 2500HD 3/4 ton pick-up truck chassis
• 8 HD paths, redundant Ku band system
• 1.8 meter Ku band antenna (2 port, no restrictions) with 400w amplifiers
• Adtec HD encoders, 16 channels of audio
• 40x40 HD-SDI router
• Adtec RD-70 HD Digital receiver/IRDs
• Adtec muliplexer system

• 12 input multi-viewer with 40" Panasonic HD LED wall monitor
• 4 Paths of IFB  (Studio Technologies IFB controller, 4 IFB boxes, 1 Lectrosonics wireless IFB system)
• RTS intercom/PL  system with 2 Telos Link telephone interface units
• 3000 ft of Tac 6 fiber
• 1000 ft of multipair 2V/4A cables
• 4 cellular phone systems
• 8 KW Cummins Onan commercial 120V generator
• Shore power inlet for external 120V 50A power input

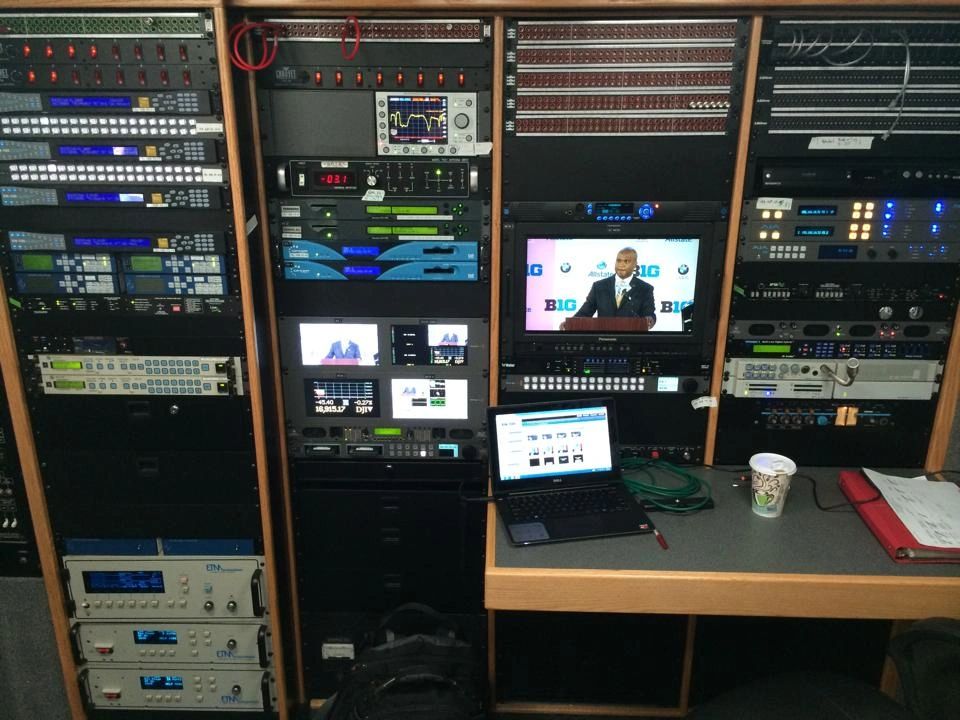

• Audio/Video rack system to support 8 transmission paths, including LCD monitors, audio mixers, HD-SDI waveform/vectorscope/eye pattern, spectrum monitor, HD-SDI DAs
• External A/V connector panel with numerous video, audio, RF and telco connects
• HD-SDI hard drive recorder
• DirecTV satellite television receiver

            For more information, please call (312) 685-9776


.
